Корень Dump Trucks Komatsu AFE77-C 830E-5 S/N A50006, A50017, A50025 CLIFFS NORTHSHORE(AFE77-C)

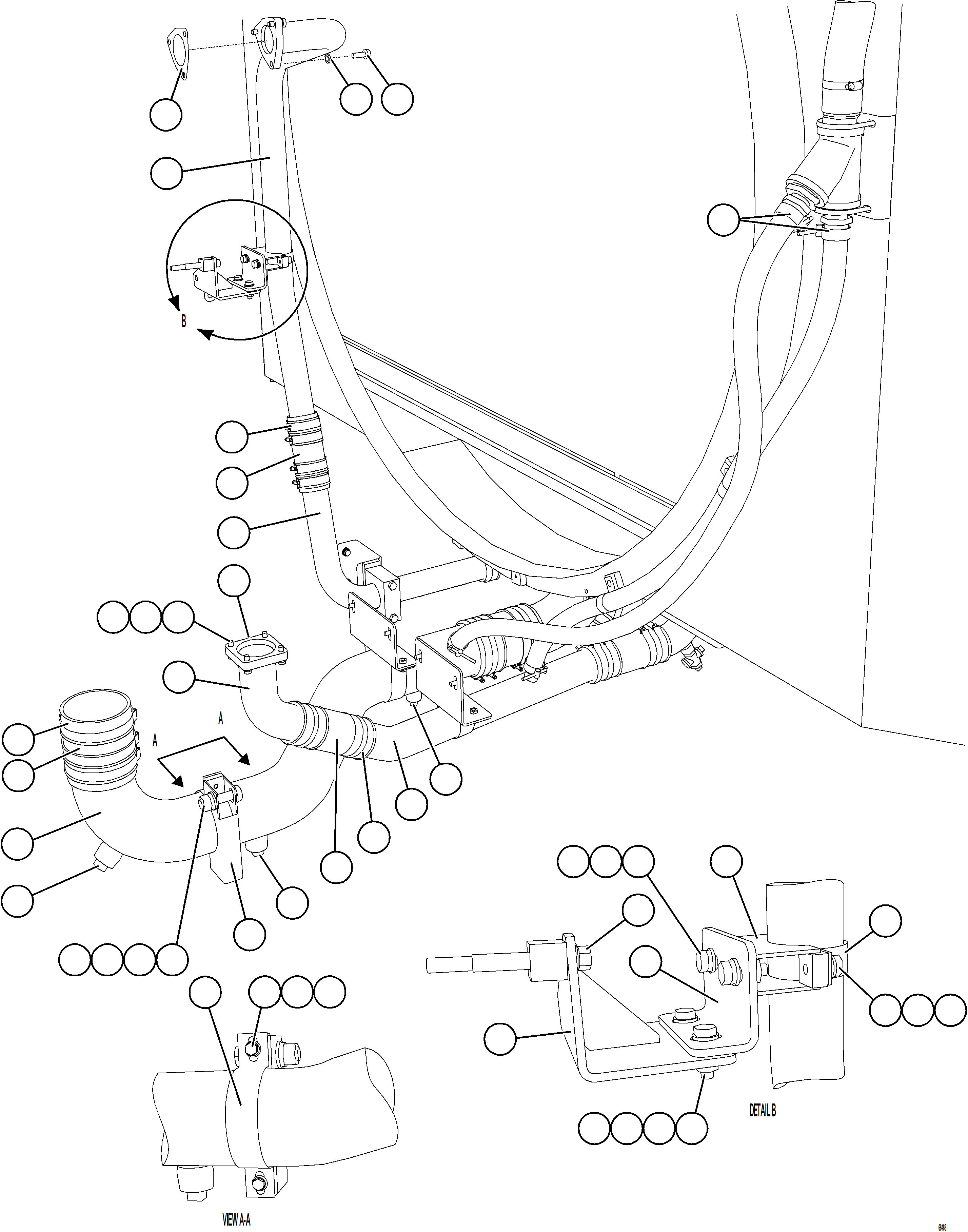

COOLING SYSTEM PIPING 2/3(042 : 68488)






































Item PartNo Description Qty Options Ref Alt
? EH2022 GASKET 1
? 58E-03-00840 TUBE 1
? MM0606 CAPSCREW - M10 X 1.50 X 30 5
? MM0471 LOCKWASHER - M10 5
? WB1088 CLAMP, T-BOLT 4
? EG6269 HOSE 1
? 58E-03-00880 TUBE 1
? EL4792 GASKET 1
? TD0791 CAPSCREW - 3/8" - 16NC X 2 1/4" 4
? TC1231 LOCKWASHER - 3/8" 10
? TR4436 FLAT WASHER, HARDENED - 3/8" 8
? EL6213 ELBOW 1
? WB1051 CLAMP, T-BOLT 3
? ED0020 HOSE 1
? 58E-03-01550 TUBE 1
? C5772 PLUG, PIPE - 1" 2
? C1648 CAPSCREW - 3/4" - 10NC X 3" 1
? WA0362 FLAT WASHER - 3/4" 2
? TR4735 LOCKWASHER - 3/4" 1
? TR8960 NUT - 3/4" - 10NC 1
? EM6437 BRACKET 1
? EH7753 HOSE 1
? WB1047 CLAMP, T-BOLT 4
? 58E-03-00860 TUBE 1
? R2028 PLUG, PIPE 1
? 58F-94-00020 CLAMP, T-BOLT 2
? EL0668 BRACKET 1
? EH3195 CLAMP 1
? TC1234 CAPSCREW - 3/8" - 16NC X 3/4" 4
? MM0461 FLAT WASHER - M10 6
? EH3176 PLATE, BENT 1
? MM0607 CAPSCREW - M10 X 1.50 X 35 2
? XB8739 BRACKET 1
? MM0719 NUT - M10 X 1.50 2
? EL2377 PLATE, BENT 1
? PC3031 CAPSCREW - M12 X 1.75 X 100 1
? NOTE: NS = NOT SHOWN
? 58E-03-01110 REDUCER 1
