Корень Dump Trucks Komatsu AFE NEW AFE59-HV 930E-4 S/N GAE2285 - UP TECK - GLIDER KIT(afe59-hv)

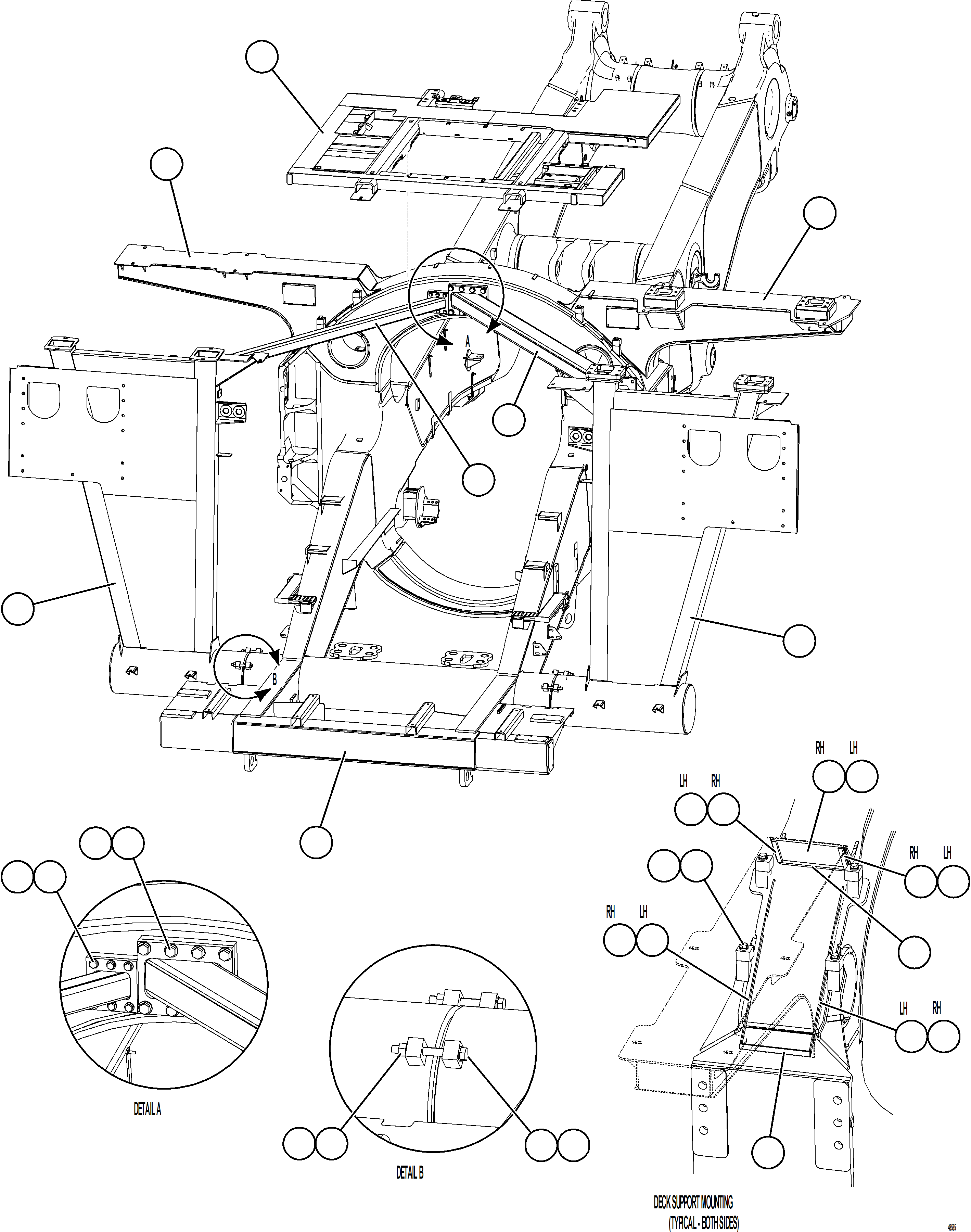

FRAME & UPRIGHTS(A-010 : 48535)



























Item PartNo Description Qty Options Ref Alt
? FRAME, MAIN (1) 1
? UPRIGHT - LH (1) 1
? UPRIGHT - RH (1) 1
? MM0465 FLAT WASHER - M20 16
? MM0168 CAPSCREW - M20 X 2.50 X 180 8
? MM0182 NUT - M20 X 2.50 8
? TUBE, ROPS - LH (1) 1
? TUBE, ROPS - RH (1) 1
? MM0708 FLAT WASHER, HARDENED - M24 16
? MM0058 CAPSCREW - M24 X 3.00 X 60 16
? EL1255 SUPPORT, DECK - RH 1
? MM0706 FLAT WASHER, HARDENED - M16 12
? MM0071 CAPSCREW - M16 X 2.00 X 45 12
? EK3908 BACKER 2
? EK3905 BACKER, VERTICAL - RH 2
? EK3904 PLATE, END CAP - RH 1
? 58F-46-40014 SUPPORT, DECK - CENTER 1
? 01643-32060 FLAT WASHER, HARDENED - M20 8
? MM0091 CAPSCREW - M20 X 2.50 X 80 8
? EL1256 SUPPORT, DECK - LH 1
? EK3910 BACKER, VERTICAL - LH 2
? EK3914 BACKER - LH 2
? EK3909 PLATE, END CAP - LH 1
? ED4792 SQUARE CUT 2
? EK3915 BACKER - RH 2
? NOTE: NS = NOT SHOWN
? NOTE: (1) ORDER FROM FACTORY.
