Корень Dump Trucks Komatsu AFE NEW AFE78-AY 930E-5 S/N A40170 THEISS(afe78-ay)

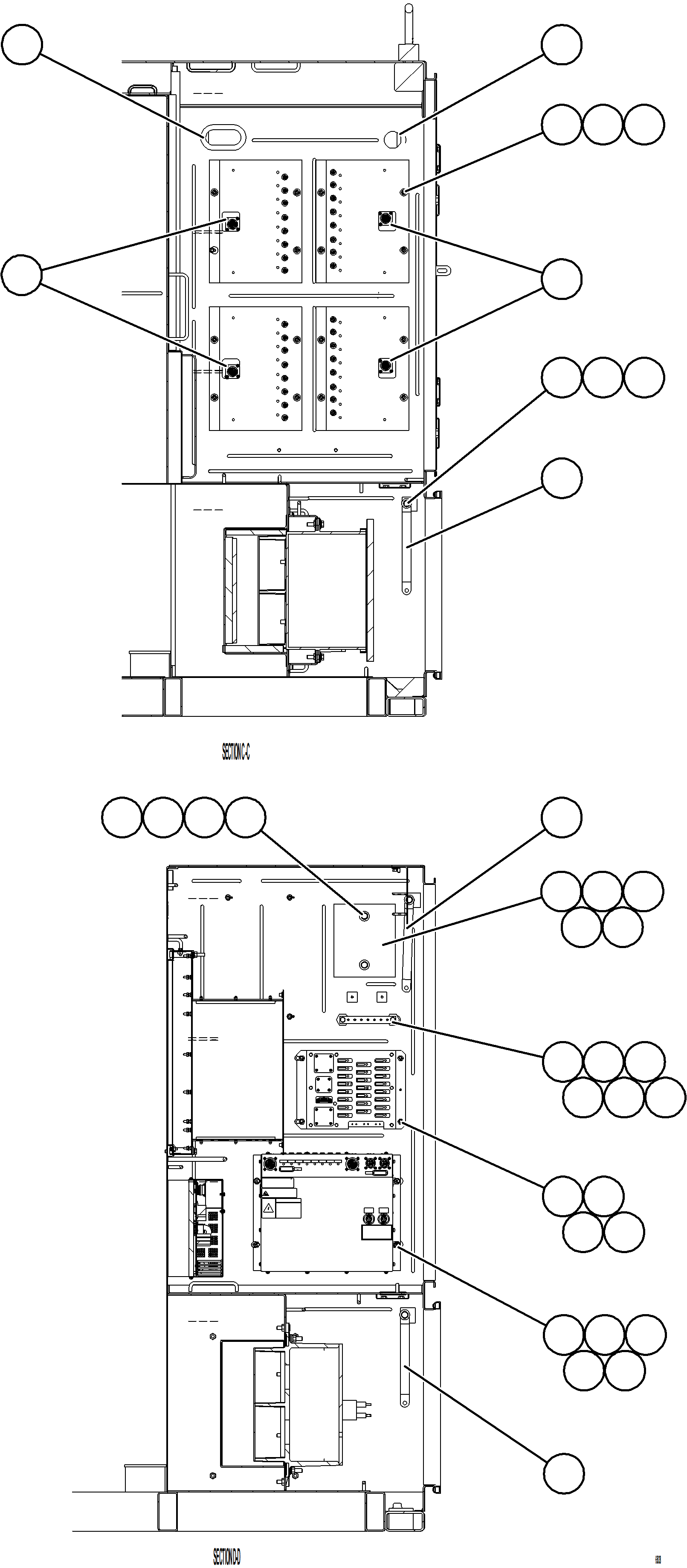

CONTROL CABINET 5/13(262 : 65038)
































Item PartNo Description Qty Options Ref Alt
? BF0699 CAPSCREW 2
? VE4902 NUT - 1/4" - 20NC 16
? 58D-98-01460 GROMMET, RUBBER 1
? 58F-43-00280 TRIM, EDGE 1
? 58F-43-00200 PANEL ASSEMBLY 4
? 58F-43-00850 POWER SUPPLY 1
? GE1383 FLAT WASHER - 11/16" 4
? 58D-98-00880 MODULE, CPD 1
? 58E-00-01570 FLAT WASHER - 5/16" 10
? VE5013 NUT - 5/16" - 18NC 10
? 58F-43-01650 GROUND STRAP 2
? GE0588 INSULATOR 2
? 58D-98-00950 BUS BAR 1
? XA4233 FLAT WASHER - 1/4" 2
? VE4687 LOCKWASHER - 3/8" 2
? XA3591 SHIELD 1
? XA5272 CAPSCREW - 3/8" - 16NC X 5/8" 2
? VE4515 FLAT WASHER - 3/8" 2
? GE0231 PANEL, FUSE 1
? GE0232 FUSE LIMITER
? VE4696 LOCKWASHER - 5/16" 12
? BF3908 SHIELD 2
? XA3592 INSULATOR 2
? VE4343 FLAT WASHER - 5/16" 2
? VE7202 WASHER - 1/4" 2
? XA5003 LOCKWASHER - 1/4" 13
? 58D-43-00320 CAPSCREW - 1/4" - 20NC X 1/2” 2
? NOTE: NS = NOT SHOWN
? 58F-43-01660 HARNESS, WIRING - GDH 1
? 58F-43-01670 HARNESS, WIRING - HV3 1
? 58F-43-01760 HARNESS, WIRING - LV1 1
? 58F-43-01770 HARNESS, WIRING - HV1 1
