Item |
PartNo |
Description |
Qty |
Options |
Ref |
Alt |
|
? |

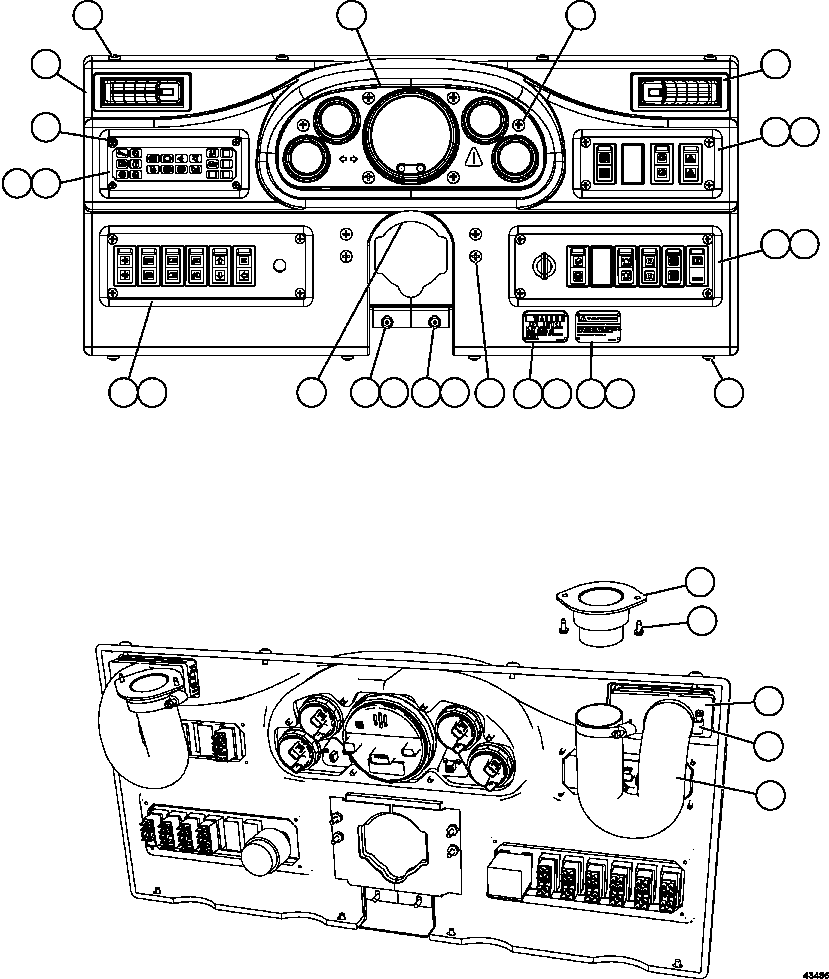

PC3385 |
GAUGE PANEL (SEE FIG 61325) |
1 |
|
61325 |
|
|
? |
PB8658 |
SCREW - M6 X 1.00 X 30 |
10 |
|
|
|
|
? |
EK7947 |
LOUVER, RECTANGULAR |
2 |
|
|
|
|
? |
XB8077 |
DASH MODULE, UPPER RH (SEE FIG 43488) |
1 |
|
43488 |
|
|
? |
58F-54-00600 |
DASH MODULE, LOWER RH (SEE FIG 42341) |
1 |
|
42341 |
|
|
? |
58E-93-00490 |
DECAL, SHIFT SELECTOR (SPANISH) (1) |
1 |
|
|
|
|
? |
WB3292 |
DECAL, KEY SWITCH WARNING (SPANISH) (1) |
1 |
|
|
|
|
? |
DC9822 |
DRIVE SCREW |
8 |
|
|
|
|
? |
SM2648 |
PLATE, SEAL RETAINER - RH |
1 |
|
|
|
|
? |
SM2646 |
PLATE, SEAL RETAINER - LH |
1 |
|
|
|
|
? |
PB9829 |
SCREW - M6 X 1.00 X 16 |
10 |
|
|
|
|
? |
TX7829 |
SEAL, STEERING COLUMN |
1 |
|
|
|
|
? |
EL3494 |
DASH MODULE, LOWER LH (SEE FIG 61324) |
1 |
|
61324 |
|
|
? |
EK8962 |
SEAL, LOWER MODULE |
2 |
|
|
|
|
? |
EK8961 |
SEAL, UPPER MODULE |
2 |
|
|
|
|
? |
PC3588 |
PANEL, STATUS LIGHT |
1 |
|
|
|
|
? |
SM2466 |
SCREW - #10 - 24NC X 1" |
4 |
|
|
|
|
? |
EL5675 |
DASH PANEL, MOLDED |
1 |
|
|
|
|
? |
SM5145 |
TUBE (1) |
2 |
|
|
|
|
? |
WA4513 |
SCREW - #10 - 24NC X 1/2" (1) |
4 |
|
|
|
|
? |
CC6103 |
CLAMP, WORM DRIVE (FOR AIR HOSES) |
4 |
|
|
|
|
? |
SM2783 |
HOSE, AIR (TO RECTANGULAR LOUVERS) |
2 |
|
|
|
|
? |
EK7946 |
ADAPTER, HOSE |
2 |
|
|
|
|
? |
PC1938 |
HARNESS - MAIN GAUGE PANEL |
1 |
|
|
|
|
? |
PC1939 |
HARNESS - WARNING PANEL |
1 |
|
|
|
|
? |
|
NOTE: (1) NOT INCLUDED IN THE INSTRUMENT PANEL ASSEMBLY. |
|
|
|
|
