Корень Dump Trucks Komatsu AFE42-Q 630E S/N 32418 LEIGHTON(afe42-q)

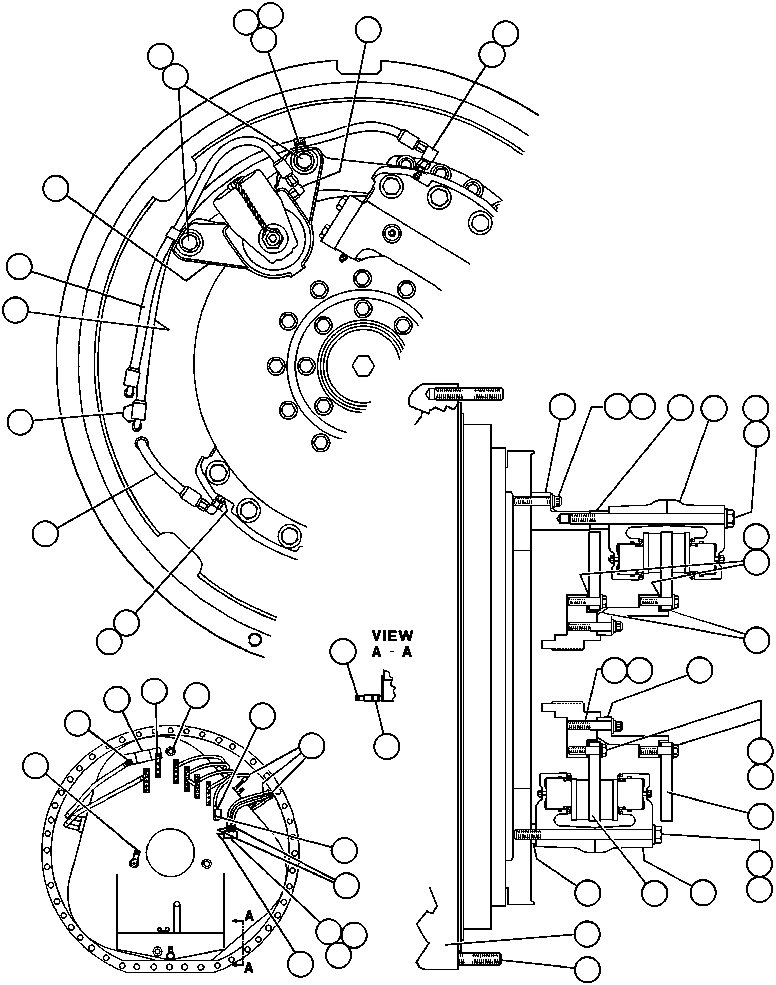

REAR DISC & PARKING BRAKE INSTL(088 : 30690)
Title Page Reference
REAR DISC BRAKE ASSM (PB8877) 092 30679
PARKING BRAKE ASSM (PB8995) 094 40774














































Item PartNo Description Qty Options Ref Alt
? EC7881 • ADAPTOR 1
? WA0915 • • CAPSCREW - 3/4" - 10NC X 3 1/4" (12 POINT) 5
? WA0362 • • FLAT WASHER - 3/4" 15
? TX1238 • • BRACKET 1
? PB8877 • • DISC BRAKE ASSM (SEE INDEX) 2
? WA4158 • • CAPSCREW - 7/8" - 9NC X 13" 4
? WA0363 • • FLAT WASHER - 7/8" 8
? TK8634 • • SHIM - .010 6
? TK8635 • • SHIM - .040 5
? PB5669 • • BUSHING 2
? EC7878 • • SPACER 1
? VM4571 • • CAPSCREW - 3/4" - 10NC X 2 1/2" 2
? PB8995 • • PARKING BRAKE ASSM (SEE INDEX) 1
? EC7883 • • ADAPTOR 1
? WA0942 • • CAPSCREW - 3/4" - 10NC X 4.00" (12 POINT) 8
? TX0401 • • DISC - 25 INCH 2
? VN9104 • • CAPSCREW - 5/8" - 11NC X 3" 24
? WA5632 • • CAPSCREW - 7/8" - 9NC X 11 1/4" 4
? TY1633 • • STUD - 1" - 14UNS X 6" 24
? TF6925 • • CLAMP 3
? VH9969 • • WELD STUD - 3/8" - 16NC X 3/4" 2
? WA3592 • • STEM, HOSE - 90 DEG 1
? HE5611 • • LOCKNUT - 3/8" - 16NC 2
? HA6704 • • HOSE - TO PARKING BRAKE ASSM 1
? HA6654 • • HOSE - TO UPPER PARKING BRAKE ASSM 1
? HA6703 • • HOSE - TO LOWER BRAKE ASSM 1
? WB0374 • • FITTING - 90 DEG 2
? TR1376 • • CAPSCREW - 1/2" - 13NC X 1 1/4" 1
? HA5574 • • HOSE 3
? WB0580 • • FITTING, STRAIGHT 4
? TK2272 • • BLOCK, JUNCTION 1
? WA0720 • • FLAT WASHER - 3/8" 2
? C1602 • • CAPSCREW - 3/8" - 16NC X 1" 2
? PB8785 • • WHEEL, MOTORIZED 1
? WB0358 • • FITTING, STRAIGHT ADAPTOR 1
? WB0442 • • FITTING - 90 DEG 1
? WA3098 • • FITTING, ELBOW - 90 DEG 1
? WB0508 • • FITTING - 90 DEG 1
? WA0361 • • FLAT WASHER - 5/8" 24
? TK5255 • • BAR, BUS 1
? TG5720 • • CAPSCREW - 3/8" - 16NC X 1" 1
? WA4681 • • FITTING, STRAIGHT 2
? DH3095 • • FITTING, PIPE 1
? WA2566 • • FITTING, CAP NUT 1
? • • (QUANTITIES SHOWN ARE FOR ONE SIDE ONLY) 65535
