Корень Excavators Komatsu PC138US-10 S/N F40003 AND UP(PC138U10)

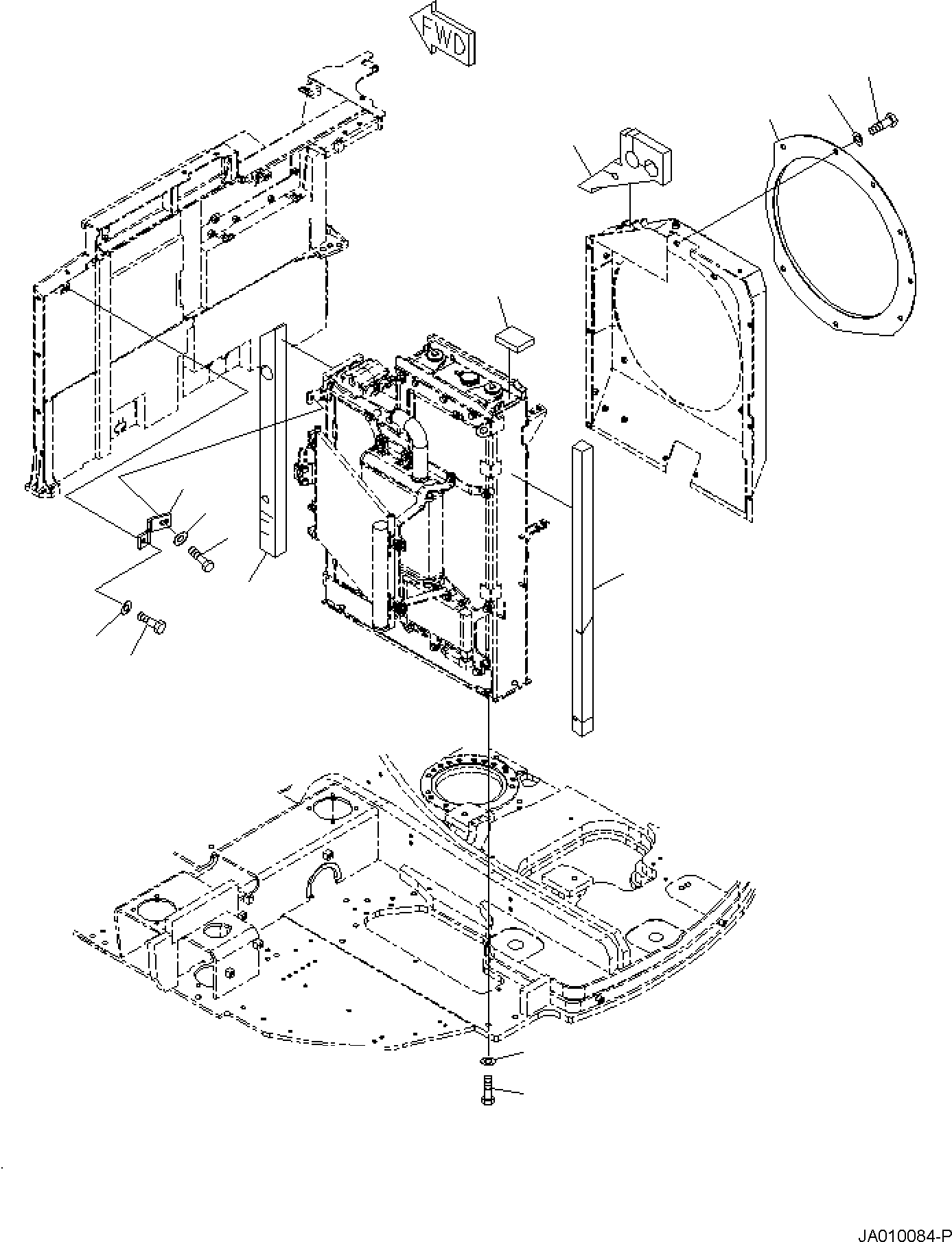

COOLING SYSTEM (RADIATOR MOUNTING)(C0100-001008 : C0100-001008)














Item PartNo Description Qty Options Ref Alt
? 22B-03-31250 PLATE 1
SN: F40003-
? 01010-81230 BOLT 1
SN: F40003-
? 175-54-34170 WASHER 1
SN: F40003-
? 01010-81230 BOLT 1
SN: F40003-
? 01643-31232 WASHER 1
SN: F40003-
? 01010-81245 BOLT 4
SN: F40003-
? 175-54-34170 WASHER 4
SN: F40003-
? 22B-03-31511 SHEET 1
SN: F40003-
? 22B-03-31520 SHEET 1
SN: F40003-
? 22B-03-31530 SHEET 1
SN: F40003-
? 22B-03-31631 SHEET 1
SN: F40003-
? 22B-03-31921 COVER 1
SN: F40003-
? 203-54-56970 WASHER 8
SN: F40003-
? 01010-81020 BOLT 8
SN: F40003-
