Корень Dump Trucks Komatsu AFE42-Q 630E S/N 32418 LEIGHTON(afe42-q)

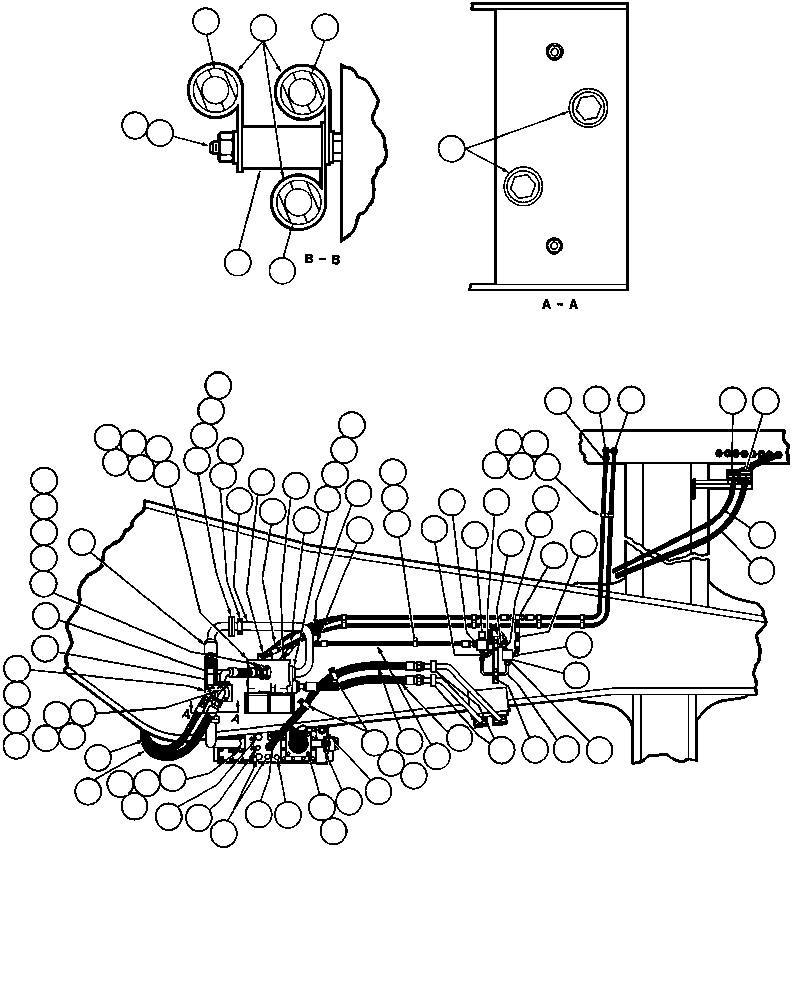

HOIST SYSTEM PIPING - 2(424 : 30589)
Title Page Reference
HOIST VALVE ASSM (PB7648) 428 30361




































































Item PartNo Description Qty Options Ref Alt
? WA3033 • FITTING, ELBOW - 45 DEG 1
? TF8090 • • CLAMP, HALF 6
? VG9095 • • SEAL, O-RING 3
? C1614 • • CAPSCREW - 1/2" - 13NC X 1 1/2" 16
? C1540 • • LOCKWASHER - 1/2" 24
? HA6447 • • HOSE 1
? PB7648 • • HOIST VALVE ASSM (SEE INDEX) 1
? C1663 • • CAPSCREW - 7/8" - 9NC X 3" 3
? C1543 • • LOCKWASHER - 7/8" 3
? C1529 • • NUT - 7/8" - 9NC 3
? TZ8658 • • BRACKET, MOUNTING 1
? WA0363 • • FLAT WASHER - 7/8" 6
? C1615 • • CAPSCREW - 1/2" - 13NC X 1 3/4" 8
? WA0232 • • SEAL, O-RING 2
? VH6718 • • FLANGE, SPLIT 4
? WA4712 • • CLAMP 1
? WA3559 • • CHANNEL 1
? TZ8657 • • TUBE 1
? WB0537 • • FITTING, ELBOW - 45 DEG 1
? HA5768 • • HOSE (1) 1
? HA5769 • • HOSE 1
? HA6444 • • HOSE 1
? TF3231 • • FLANGE, SPLIT 2
? WA0187 • • SEAL, O-RING 1
? WB0557 • • FITTING, TEE 2
? WB0584 • • FITTING 2
? PB7242 • • SOLENOID, HOIST LIMIT (3-WAY) 1
? TZ5040 • • TUBE 1
? WB0418 • • FITTING, TEE 1
? WB0655 • • ELBOW, SWIVEL (45 DEG) 1
? HA6616 • • HOSE 1
? HA5900 • • HOSE 1
? C5751 • • CAPSCREW - 3/8" - 16NC X 2 1/2" 1
? HE5611 • • LOCKNUT - 3/8" - 16NC 6
? C1547 • • FLAT WASHER - 3/8" 12
? TF6925 • • CLAMP 16
? TY8375 • • SPACER 5
? WA4706 • • CLAMP 1
? WA4708 • • CLAMP 1
? HA6617 • • HOSE 1
? HA6621 • • HOSE 1
? HA5570 • • HOSE 1
? WB0508 • • FITTING - O-RING 1
? PB8367 • • VALVE, PILOT CHECK 1
? EB4166 • • TUBE 1
? WA4704 • • CLAMP 2
? WA4709 • • CLAMP 2
? HA6446 • • HOSE 1
? HA5843 • • HOSE 1
? HA6117 • • HOSE 1
? C1602 • • CAPSCREW - 3/8" - 16NC X 1" 2
? VL9602 • • CLAMP 1
? VM0317 • • PLUG, O-RING 5
? VM0315 • • PLUG, O-RING 2
? TZ5135 • • VALVE, ASSEMBLY (REWORK) 1
? C1622 • • CAPSCREW - 1/2" - 13NC X 3 1/2" 4
? VL9045 • • FITTING, TUBE CONNECTOR 1
? VM0319 • • PLUG, O-RING 1
? HA6312 • • HOSE 2
? HA6313 • • HOSE 2
? C0312 • • LOCKWASHER - 3/8" 8
? TF8077 • • FLANGE, SPLIT 4
? VG9097 • • SEAL, O-RING 2
? C1603 • • CAPSCREW - 3/8" - 16NC X 1 1/4" 8
? PB7982 • • VALVE, ORIFICE CHECK 1
? PB8464 • • FLANGE, ELBOW 90 DEG 1
? • • NOTE: (1) NOT USED WHEN KIT MK3591 IS USED. (SEE INDEX) 65535

Dump Trucks Komatsu / AFE42-Q 630E S/N 32418 LEIGHTON(afe42-q) / HOIST SYSTEM PIPING - 2(424 : 30589)
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
