Корень Dump Trucks Komatsu AFE42-Q 630E S/N 32418 LEIGHTON(afe42-q)

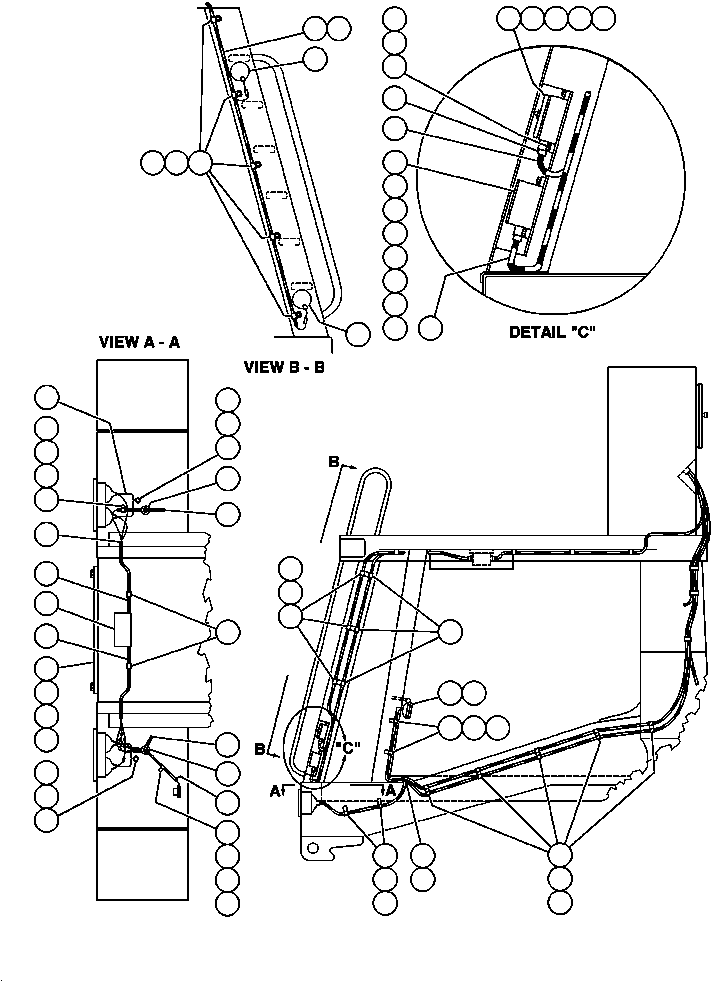

HEAD, LADDER & SERVICE LIGHT WIRING(398 : 30706)
Title Page Reference
LIGHT ASSM (SUPER HALOGEN) - 2 396 30671














































Item PartNo Description Qty Options Ref Alt
? TB7608 • COVER, BUMPER 1
? VC1388 • • CAPSCREW - 5/8" - 11NC X 2" 4
? VC1390 • • LOCKWASHER - 5/8" 4
? WA4771 • • FLAT WASHER - 5/8" 4
? TZ2413 • • LADDER LIGHT ASSM 4
? SR6747 • • LAMP - 24V 1
? HC9043 • • DISCONNECT, KNIFE 1
? TZ5180 • • HARNESS - R.H. 1
? TC1231 • • LOCKWASHER - 3/8" 24
? TC1233 • • NUT - 3/8" - 16NC 24
? 424243 • • CLAMP 5
? SL8936 • • GROMMET 1
? TF6925 • • CLAMP 2
? VY8331 • • CLAMP 14
? TZ5189 • • HARNESS - SERVICE LIGHTS 2
? AK7504 • • SERVICE LIGHT ASSM (SEE FIG 30671) 2
? SD2582 • • LOCKWASHER - 5/16" 2
? VH9969 • • WELD STUD - 3/8" - 16NC X 3/4" 4
? TD1548 • • CAPSCREW - 1/4" - 20NC X 5/8" 2
? DC3584 • • LOCKWASHER - 1/4" 8
? TD1549 • • NUT - 1/4" - 20NC 2
? VH5783 • • GROMMET 1
? EC6732 • • HARNESS 1
? EB5716 • • CONDUIT 2
? PB8309 • • COUPLING,CONDUIT 1
? VN9582 • • SETSCREW - #10 X 1/2" 2
? EC6733 • • HARNESS, HEADLIGHT 1
? EC6735 • • CABLE, HEADLIGHT (SEE CONTROL CABINET - REAR FIG 30761) 1
? EB9058 • • HARNESS - L.H. 1
? TD1809 • • CAPSCREW - 1/4" - 20NC X 3/4" 4
? PB9073 • • CONDULET, SINGLE GANG 1
? TG2562 • • CLAMP 3
? 720462 • • CLAMP 3
? VM5737 • • GRIP, CORD 1
? EB9058 • • HARNESS - L.H. 1
? VA2826 • • COVER, SINGLE GANG 1
? VA2828 • • SWITCH, FLUSH HEAD 1
? PB4043 • • GASKET, RUBBER 2
? HE2467 • • MACHINE SCREW - #6 - 32NC X 1/2" 8
? DF4944 • • LOCKWASHER - #6 8
? PB8735 • • SWITCH, MOMENTARY ON/ON 1
? PB9075 • • CONDULET, SINGLE 1
? TZ0880 • • COVER, SWITCH 1
? WA4708 • • CLAMP 2
? EC6685 • • HARNESS (SEE CONTROL CABINET - REAR FIG 30761) 1
