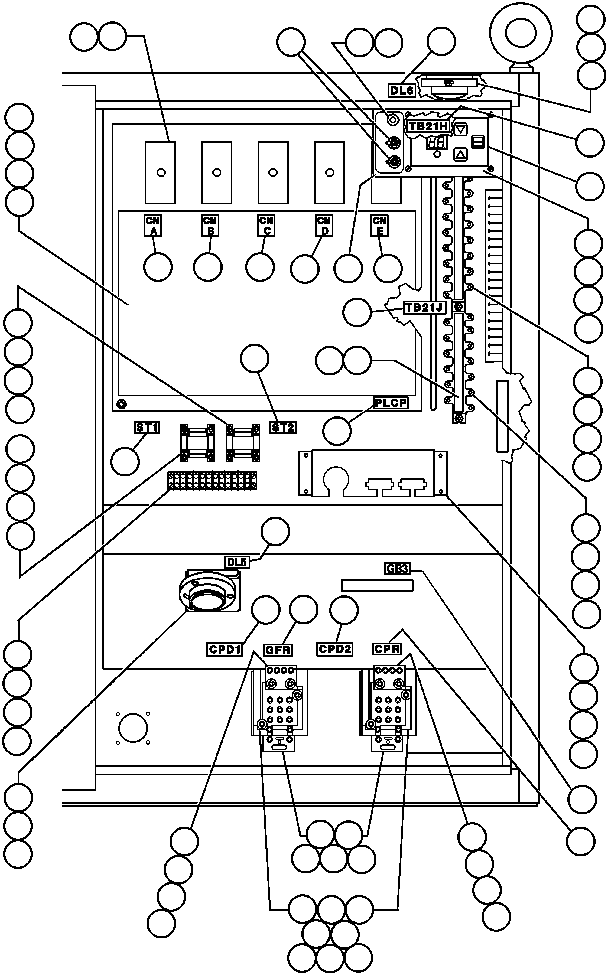

CONTROL CABINET ASSM - 5(266 : 35426)
Title Page Reference
STATEX III CONTROL CABINET (PB8946) 278 30675



























































Item PartNo Description Qty Options Ref Alt
? PB8040 • PANEL PLUG KIT - SSIII 1
? EC4862 • • SLEEVE, INSULATING 4
? EC2721 • • NAME PLATE - CN A 1
? EC2722 • • NAME PLATE - CN B 1
? EC2723 • • NAME PLATE - CN C 1
? EC7251 • • PLATE, NAME - CN D 1
? EC7252 • • PLATE, NAME - CN E 1
? SR8325 • • SWITCH, TOGGLE 2
? EC7461 • • PLATE, NAME - DL6 1
? VF6697 • • INDICATOR, HIGH BEAM 1
? VL6234 • • LAMP, MINIATURE 1
? VS0035 • • DOME LIGHT 2
? VZ1912 • • BULB 2
? TM9090 • • INSULATOR 2
? DC3101 • • LOCKWASHER - #10 18
? TG1929 • • MACHINE SCREW - #10 10
? EB7403 • • PLATE, NAME - TB21H 1
? PB8056 • • PANEL, DISPLAY EVENT SSIII 1
? ED3404 • • BRACKET, BENT 1
? MM0176 • • NUT - M6 14
? MM0459 • • FLAT WASHER - M6 21
? MM0469 • • LOCKWASHER - M6 14
? PB5732 • • BOARD, TERMINAL 1
? MM0206 • • LOCKWASHER - M5 7
? MM0373 • • NUT - M5 7
? ED6897 • • PLATE, NAME - TB21J 1
? VM2951 • • SET SCREW - #6 - 32NC X 5/16" 2
? WB2094 • • STRIP, CIRCUIT I.D. 1
? VS8479 • • BOARD, TERMINAL 1
? PB8946 • • STATEX III CONTROL CABINET (SEE INDEX) 1
? MM0378 • • LOCKWASHER, EXTERNAL TOOTH - M4 12
? TZ7521 • • NAME PLATE - PLCP 1
? EC7256 • • PLATE, NAME - ST 2 1
? MM0372 • • NUT - M4 8
? EF5554 • • TRANSFORMER, ALT SYNC 2
? ED2918 • • BRACKET, MOUNTING 1
? 30481R1 • • FLAT WASHER - M5 4
? TZ7542 • • NAME PLATE - GB3 1
? VC5344 • • FLAT WASHER - #10 16
? SD5369 • • MACHINE SCREW 4
? PB5587 • • MODULAR 2
? TZ7527 • • NAME PLATE - CPR 1
? SD4245 • • LOCKWASHER - #10 (EXTERNAL TOOTH) 4
? DF0017 • • NUT - #10 - 24NC 8
? PB4255 • • MODULE, SUPPRESSION 2
? VM0065 • • RELAY 2
? WA3367 • • NUT ASSM 4
? DL9148 • • BAR, BUS 4
? EC7258 • • PLATE, NAME - CPD1 1
? TZ7526 • • NAME PLATE - GFR 1
? EC7259 • • PLATE, NAME - CPD2 1
? EC7457 • • PLATE, NAME - DL5 1
? EC7255 • • PLATE, NAME - ST1 1
? VG6991 • • MACHINE SCREW - #8 - 24NC X 1" 2
? TF6248 • • FLAT WASHER - #8 2
? VM9910 • • LOCKWASHER - #8 2
? PB7591 • • BLOCK, TERMINAL 1
? WB2078 • • DECAL, SWITCH 1
