Корень Excavators Komatsu PC240NLC-8K S/N K50001-UP(pc240n2u)

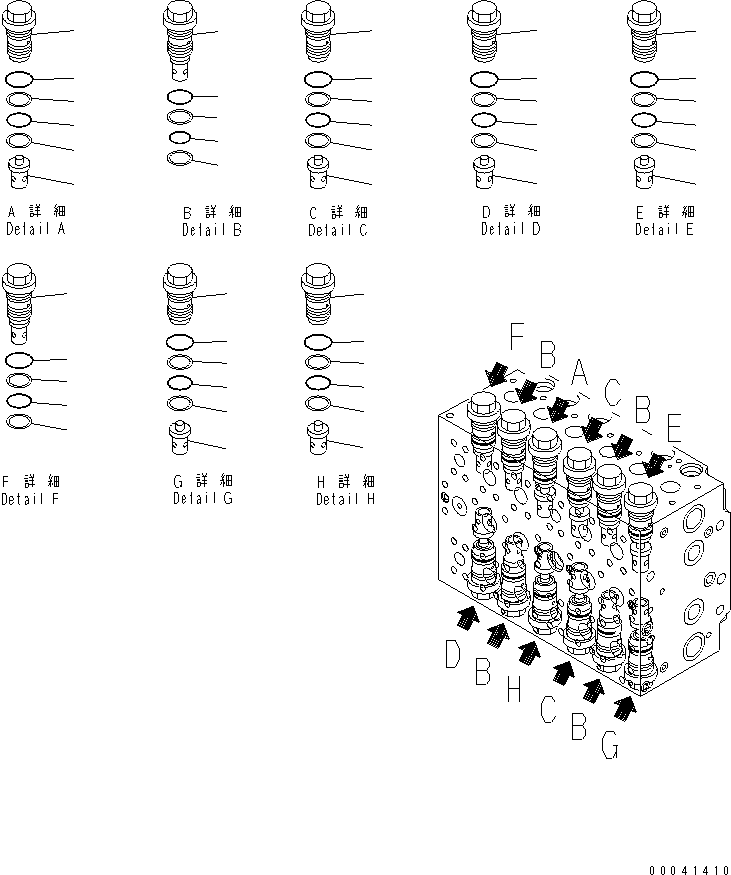

MAIN VALVE (1-ACTUATOR) (6/19)(017040 : Y1662-06A0)






































Item PartNo Description Qty Options Ref Alt
? (723-47-24202) VALVE ASSEMBLY 1
SN: K50631-
? (723-47-24200) VALVE ASSEMBLY 1
SN: K50001-K50630
? THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-19A0.
? ☆ • BODY SUB ASSEMBLY 1
SN: K50001-
? 723-46-41210 • • VALVE 6
SN: K50001-
? 723-46-41190 • • VALVE 1
SN: K50001-
? 723-46-40100 • • VALVE ASSEMBLY 1
SN: K50001-
? 700-93-11320 • • • O-RING 1
SN: K50001-
? 723-46-41950 • • • RING 2
SN: K50001-
? 07002-13634 • • • O-RING 1
SN: K50001-
? 723-46-42700 • • VALVE ASSEMBLY 4
SN: K50001-
? 700-93-11320 • • • O-RING 1
SN: K50001-
? 723-46-41950 • • • RING 2
SN: K50001-
? 07002-13634 • • • O-RING 1
SN: K50001-
? 723-46-41100 • • VALVE ASSEMBLY 2
SN: K50001-
? 700-93-11320 • • • O-RING 1
SN: K50001-
? 723-46-41950 • • • RING 2
SN: K50001-
? 07002-13634 • • • O-RING 1
SN: K50001-
? 723-46-45100 • • VALVE ASSEMBLY 1
SN: K50001-
? 700-93-11320 • • • O-RING 1
SN: K50001-
? 723-46-41950 • • • RING 2
SN: K50001-
? 07002-13634 • • • O-RING 1
SN: K50001-
? 723-46-46300 • • VALVE ASSEMBLY 1
SN: K50001-
? 700-93-11320 • • • O-RING 1
SN: K50001-
? 723-46-41950 • • • RING 2
SN: K50001-
? 07002-13634 • • • O-RING 1
SN: K50001-
? 723-46-43400 • • VALVE ASSEMBLY 1
SN: K50001-
? 700-93-11320 • • • O-RING 1
SN: K50001-
? 723-46-41950 • • • RING 2
SN: K50001-
? 07002-13634 • • • O-RING 1
SN: K50001-
? 723-46-43100 • • VALVE ASSEMBLY 1
SN: K50001-
? 700-93-11320 • • • O-RING 1
SN: K50001-
? 723-46-41950 • • • RING 2
SN: K50001-
? 07002-13634 • • • O-RING 1
SN: K50001-
? 723-46-46101 • • VALVE ASSEMBLY 1
SN: K50001-
? 700-93-11320 • • • O-RING 1
SN: K50001-
? 723-46-41950 • • • RING 2
SN: K50001-
? 07002-13634 • • • O-RING 1
SN: K50001-
