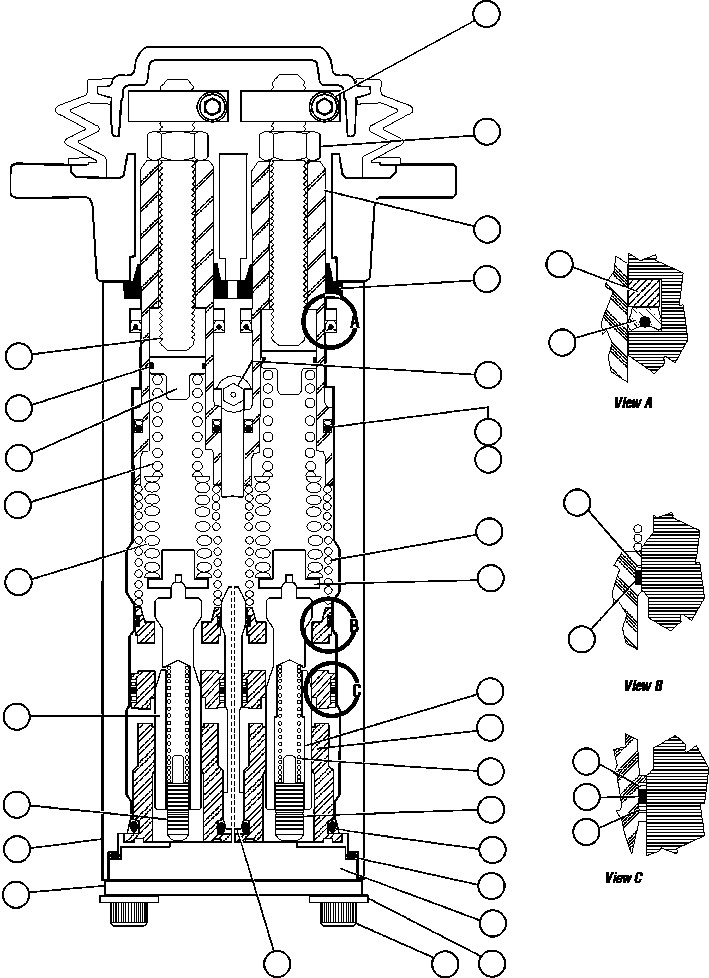

AFE47-AA 730E ARCH MINERALS - CANTENARY COAL (32845)(AFE47-AA)


































Item PartNo Description Qty Options Ref Alt
? VE8070 • COLLAR 2
? BF2596 • • NUT 2
? BF2594 • • PLUNGER 2
? • • SEAL, WIPER 2
? VE8533 • • SCREW 1
? BF2595 • • PACKING 6
? BF2598 • • RING, GLYD 2
? • • SPRING, PLUNGER RETURN 2
? BF2597 • • SEAT, SPRING 2
? BF1862 • • SPOOL 1
? • • SLEEVE 2
? • • SPRING, SPOOL 2
? BF1863 • • PLUNGER 1
? • • SEAL 2
? • • PACKING 1
? VE9418 • • PLUG 1
? BF2590 • • WASHER 4
? • • BOLT 4
? VE9421 • • RETAINER, SLEEVE 1
? BF2589 • • BODY - DUAL VALVE 1
? • • PLUNGER 1
? EF5752 • • SPOOL, REGULATING 1
? VE8080 • • SPRING, REGULATOR 2
? BF2599 • • SPRING, REGULATOR 2
? BF2593 • • SEAT - STAGING 2
? BF2592 • • PACKING 2
? BF2591 • • STUD 2
? • • RING, BACKUP 2
? • • SEAL 2
? • • RING, BACKUP 2
? WA0019 • • O-RING 2
? • • RING, BACKUP 4
? • • SEAL 2
? EF3449 • • PLUG, ORIFICE - .045 1
