Корень Excavators Komatsu PC600LC-8 S/N K50001-UP(pc600l4u)

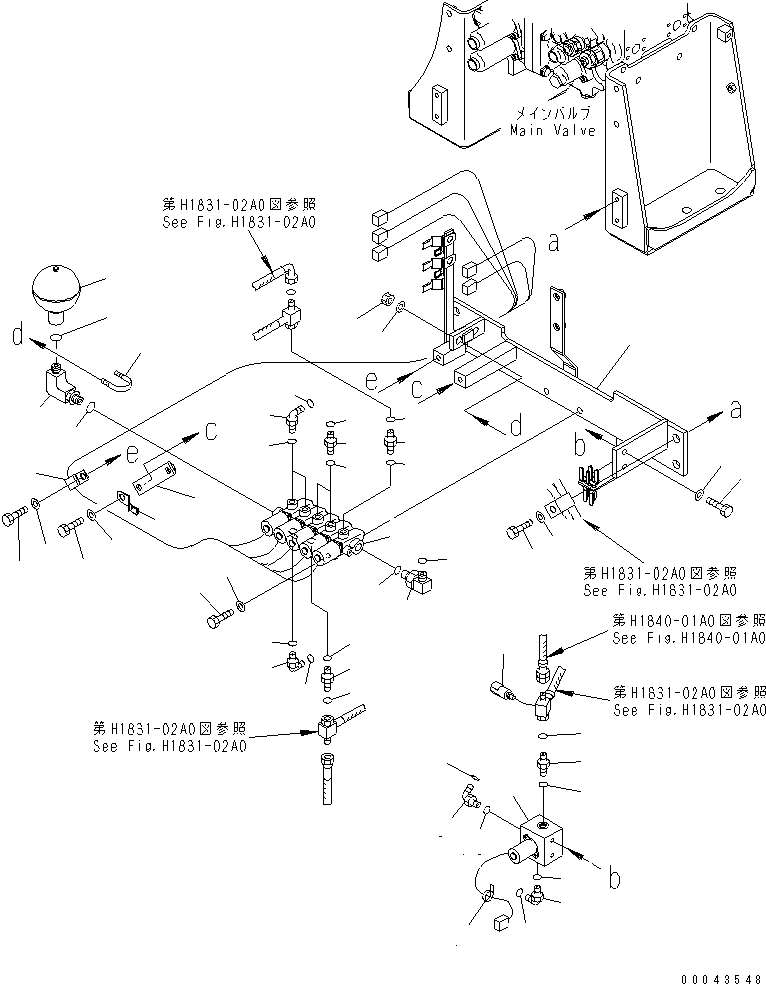

SOLENOID VALVE (SOLENOID AND EPC VALVE)(005038 : H1831-01A0)
Title Page Reference
SOLENOID VALVE (INNER PARTS) 016085 Y1860-01A0
SOLENOID VALVE (FOR EPC) (INNER PARTS) 016086 Y1861-01A0


















































Item PartNo Description Qty Options Ref Alt
? 21M-62-21490 BRACKET 1
SN: K50001-
? 01010-81230 BOLT 4
SN: K50001-
? 01643-31232 WASHER 4
SN: K50001-
? (209-60-77230) VALVE ASSEMBLY 1
SN: K50001-
 Y1861-01A0
? 01010-80825 BOLT 2
SN: K50001-
? 01643-30823 WASHER 2
SN: K50001-
? 08034-20519 BAND 1
SN: K50001-
? 02782-10311 ELBOW 1
SN: K50001-
? 11Y-62-12510 ELBOW 1
SN: K50001-
? 07002-11423 O-RING 2
SN: K50001-
? 02896-11009 O-RING 2
SN: K50001-
? 11Y-62-12520 NIPPLE 1
SN: K50001-
? 07002-11423 O-RING 1
SN: K50001-
? 02896-11009 O-RING 1
SN: K50001-
? 206-06-61130 SWITCH 1
SN: K50001-
? (209-60-77240) VALVE ASSEMBLY 1
SN: K50001-
 Y1860-01A0
? 01010-81095 BOLT 2
SN: K50001-
? 01643-31032 WASHER 2
SN: K50001-
? 04434-51512 CLIP 1
SN: K50001-
? 01010-81225 BOLT 1
SN: K50001-
? 01643-31232 WASHER 1
SN: K50001-
? 207-977-5120 BRACKET 1
SN: K50001-
? 08193-20012 CLIP 1
SN: K50001-
? 01010-81225 BOLT 1
SN: K50001-
? 01643-31232 WASHER 1
SN: K50001-
? 02781-0031D UNION 2
SN: K50001-
? 07002-11423 O-RING 2
SN: K50001-
? 02896-11009 O-RING 2
SN: K50001-
? 11Y-62-12520 NIPPLE 1
SN: K50001-
? 07002-11423 O-RING 1
SN: K50001-
? 02896-11009 O-RING 1
SN: K50001-
? 02782-10311 ELBOW 2
SN: K50001-
? 07002-11423 O-RING 2
SN: K50001-
? 02896-11009 O-RING 2
SN: K50001-
? 02782-10315 ELBOW 1
SN: K50001-
? 07002-12034 O-RING 1
SN: K50001-
? 02896-11009 O-RING 1
SN: K50001-
? 21N-64-36450 ELBOW 1
SN: K50001-
? 07002-12034 O-RING 1
SN: K50001-
? 02896-11009 O-RING 1
SN: K50001-
? 02781-00315 UNION 1
SN: K50001-
? 07002-12034 O-RING 1
SN: K50001-
? 02896-11009 O-RING 1
SN: K50001-
? 20Y-60-11430 ACCUMULATOR 1
SN: K50001-
? 203-62-65281 ELBOW 1
SN: K50001-
? 07002-12034 O-RING 2
SN: K50001-
? 07283-33450 CLIP 1
SN: K50001-
? 01597-01009 NUT 2
SN: K50001-
? 01643-31032 WASHER 2
SN: K50001-
