Корень Excavators Komatsu PC150-3 S/N 3001-UP(pc150-3r)

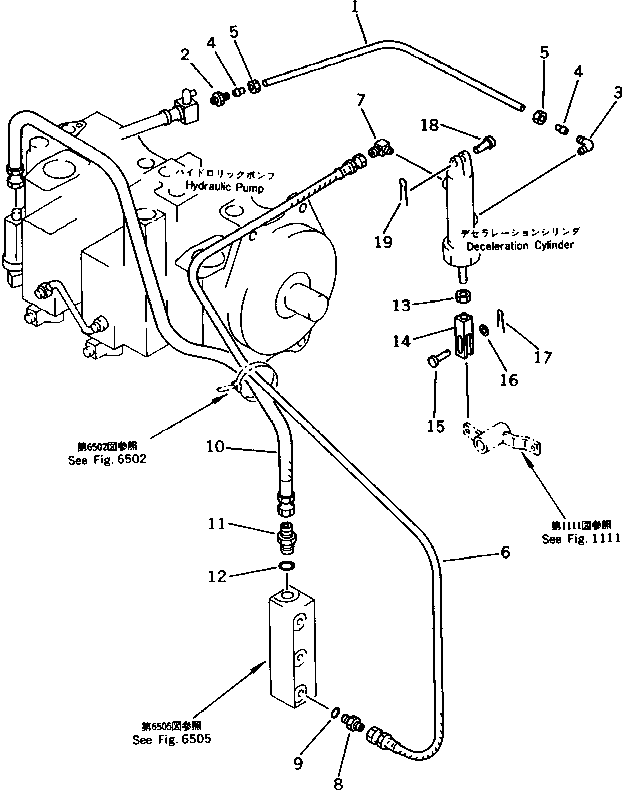

HYDRAULIC PIPING (WITH AUTO DECELERATION)(#3001-3686)(030070 : 1105)



















Item PartNo Description Qty Options Ref Alt
? 07822-00405 TUBE 1
SN: 3001-@
? 07836-00410 CONNECTOR 1
SN: 3001-@
? 07834-00410 ELBOW 1
SN: 3001-@
? 07831-00411 SLEEVE 2
SN: 3001-@
? 07832-00410 NUT 2
SN: 3001-@
? 20G-62-15430 HOSE 1
SN: 3001-3686
? 203-62-42920 ELBOW 1
SN: 3001-3686
? 203-62-44930 NIPPLE 1
SN: 3001-3686
? 07002-01423 O-RING 1
SN: 3001-@
? 07102-20412 HOSE 1
SN: 3001-@
? 07230-10422 UNION 1
SN: 3001-@
? 07002-02034 O-RING 1
SN: 3001-@
? 01583-11408 NUT 1
SN: 3001-3686
? 203-43-43240 YOKE 1
SN: 3001-3686
? 04205-10830 PIN 1
SN: 3001-3686
? 01641-20812 WASHER 1
SN: 3001-3686
? 04050-12015 PIN,COTTER 1
SN: 3001-3686
? 04205-11235 PIN 1
SN: 3001-3686
? 04050-13020 PIN,COTTER 1
SN: 3001-@
